Mechanism specification / application 05
Start with what the mechanism must survive and what the customer must see and feel. Then freeze alloy, interfaces, finish, cavity plan, die, machine, automation, inspection, and lifetime acceptance.
Technical content reviewed August 10, 2026 by Cathy, Director. Product grades, safety, security, corrosion, and durability remain subject to the complete approved assembly and applicable validation.
Application register / six product systems
A plated door lever, compression latch, electronic-lock shell, furniture pull, appliance handle, and tool frame can share a process but not an acceptance plan. Classify the product before discussing tonnage.
Lever handles, backplates, escutcheons, knobs, latch bodies, thumbturns, catches, wedges, keepers, corner stakes, and sliding-door hardware.
Pulls, knobs, hinges, brackets, feet, catches, connectors, decorative plates, drawer hardware, and concealed mechanisms.
Quarter-turn latches, compression latches, cam bodies, handles, levers, knobs, control grips, covers, and machine-access hardware.
Lock housings, key-safe bodies, electronic-lock shells, cylinder covers, strike components, internal carriers, and access-control hardware.
Appliance handles, bezels, control knobs, shower and faucet trim, operating levers, cover rings, and decorative functional shells.
Tool handles, frames, guides, fittings, buckles, clamps, small gear housings, adjustment components, and engineered mechanisms.
Material gate / decide before tonnage
The material decision changes the machine architecture, die thermal regime, cycle model, tooling life, finishing route, and plant scope. Keep assumptions visible.
Common starting point for detailed handles, lock housings, latches, knobs, escutcheons, fittings, small mechanisms, and decorative components requiring repeatable dimensions and productive multi-cavity manufacture.
Evaluate when lower density, larger envelope, temperature duty, section stiffness, or an aluminum product architecture controls the decision. Do not transfer zinc assumptions to aluminum tooling or output.
Interface anatomy / drawing release
A purchase-ready drawing separates function from appearance. It identifies which dimensions drive motion, which faces carry load, which surfaces receive finish, where inserts or fasteners transfer force, and how wear will be judged.
Use datum schemes and gauges that represent the assembled product. Avoid over-tolerancing hidden surfaces while leaving the latch, spindle, cylinder, panel, gasket, or fastener interface ambiguous.
Release rule: every critical characteristic needs a reason, measurement method, sampling plan, and reaction path.
Freeze functional datums, mating profiles, spindle or cylinder axis, fastener pattern, panel interface, and gauge method.
Define rotation, travel, stops, backlash, detents, spring force, cam rise, interference, lubrication, and misuse cases.
Separate operating, proof, impact, pull, torque, slamming, abuse, fastener, and installation loads with acceptance limits.
Map visible faces, touch zones, rack points, gate and ejector restrictions, polishing direction, plating build, and defect limits.
Control inserts, pins, springs, cylinders, clips, seals, screws, staking, riveting, adhesive, torque, and mistake-proofing.
Specify cycle profile, environment, load, lubrication, inspection intervals, failure criteria, sample size, and test evidence.
Class A touch and visible faces, secondary visible faces, hidden functional zones, and prohibited gate, ejector, flash, rack, or contact marks.
Preparation, polishing, conversion layer, copper or nickel underlayers where used, top finish, paint, powder, texture, gloss, thickness, and masking.
Account for finish build on bores, threads, pivots, cylinders, clips, bearing lands, ground contacts, seals, and snap features.
Master samples, viewing conditions, color and gloss limits, adhesion, corrosion, wear, chemical exposure, packaging, and lot reaction plan.
Finish is an engineered interface
Casting, trimming, deburring, polishing, cleaning, plating or coating, assembly, and packaging form one yield chain. Buyers should compare approved finished parts per hour—not only casting cycle time.
Multi-cavity economics
The correct cavity plan balances demand, projected area, complete shot, flow symmetry, slide actions, inserts, trim, finish capacity, inspection, tool maintenance, and business continuity.
Cavities × scheduled cycles
Casting × finish × assembly yield
OEE, changeover, maintenance, labor
Tooling, metal, process, quality, logistics
Machine selection / six locked checks
Use one approved data set across buyer, product engineer, die maker, machine supplier, finisher, automation integrator, and quality team. Record the formula, unit, source, revision, margin, and owner for every decisive value.
Total projected area of all cavities, runners and moving features multiplied by an approved cavity-pressure basis, with documented margin.
Net casting weight plus runner, gate, overflow and process allowance—not catalogue part weight alone.
Tie-bar clearance, platen, die thickness, opening, ejector, slides, cores, insert loading, cooling, weight and service access.
Thin sections, long decorative flow paths, isolated bosses, knit-risk areas, venting, temperature control and repeatable velocity transfer.
Cavities, cycle, OEE, changeover, scrap, trim, finishing yield, inspection, maintenance and real annual demand.
Metal, spray, extraction, trim, deburr, insert handling, inspection, marking, packaging, guarding, data and reject recovery.
Validation ladder
Agree who owns each gate, which configuration is tested, what evidence is retained, and what change forces revalidation.
Alloy certificate, dimensions, mass, porosity criteria where relevant, trim, surface condition, cavity identity, and traceability.
Preparation, thickness, adhesion, corrosion, color, gloss, cosmetic standard, masking, handling, and packaging.
Fit, torque, motion, stops, play, retention, operating force, sealing, electronics, adjustment, and installation.
Proof, pull, torque, slam, impact, cycling, temperature, corrosion conditioning, wear, abuse, and failure definition.
Capability, run-at-rate, boundary samples, gauges, control plan, MSA, maintenance, escalation, documents, and signed acceptance.
Buyer comparison ledger
Separate confirmed scope from allowance, option, buyer supply, supplier exclusion, and open decision. This prevents a low initial price from hiding tooling, finishing, automation, acceptance, or support gaps.
Primary application evidence
The International Zinc Association documents builders-hardware applications selected for dimensional precision, finish, integrated functions, durability, and productive pressure die casting. Those cases support the screening logic here; the approved drawing, complete-product standards, tests, and contract remain controlling.
Hardware die casting FAQ
These answers support preliminary screening. Project calculations, approved standards, trials, samples, tests, and written acceptance criteria remain controlling.
Often, but not automatically. Zinc hot chamber die casting is a strong initial route for compact detailed hardware because it can support close dimensions, complex geometry, integrated functions, productive multi-cavity tooling, and a broad range of finishes. The final choice must still clear strength, creep, temperature, corrosion, wear, mass, finish, regulation, cost, and life-cycle requirements. Larger lightweight aluminum hardware may require cold chamber review.

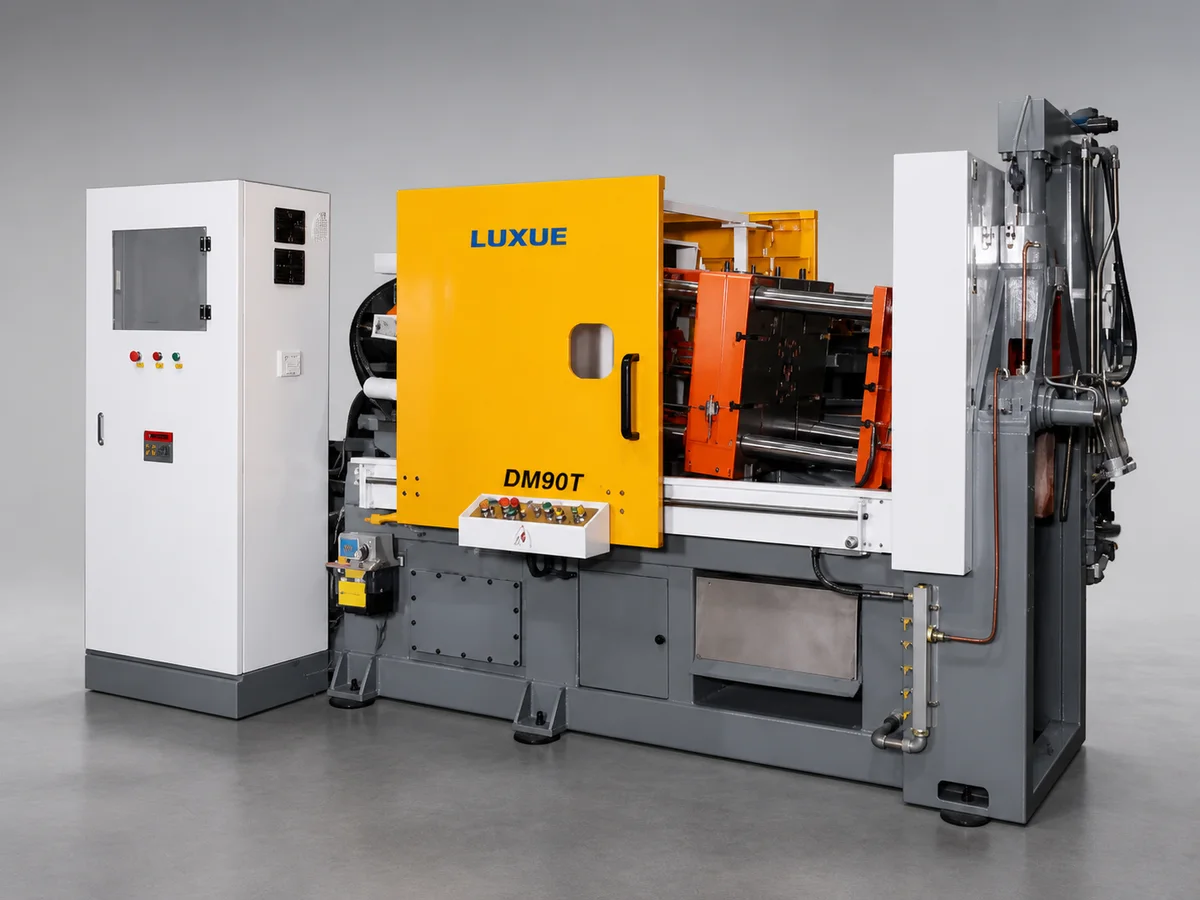

Suitable zinc alloys normally begin with a hot chamber machine review. Select from total projected area, approved cavity pressure, complete shot demand, die envelope, slides and inserts, wall and detail filling, hot-end configuration, cavity count, automation, finish protection, inspection, and output—not from part weight or headline tonnage alone.
Consider aluminum when the hardware is larger, lower density is important, temperature or stiffness requirements favor an aluminum alloy, or the complete product design already uses aluminum. Verify the alloy and temper assumptions, corrosion couple, finish, complete shot, projected area, die thermal balance, porosity-sensitive zones, machining, and cold chamber production cell.
No. A security or performance grade normally applies to a defined complete product tested to the applicable method. The casting is one contributor. Cylinders, fasteners, inserts, strike, frame, electronics, assembly, installation, loads, conditioning, test fixtures, and acceptance criteria must be controlled by the product owner and agreed supply chain.
Provide the finish system and specification, substrate alloy, visible zones, texture and gloss, color range, plating or coating thickness, corrosion test, rack and contact restrictions, polishing allowance, gate and ejector restrictions, masking, cosmetic defect standard, sample approval method, packaging, and handling rules. Finish yield belongs in the commercial model.
Define the complete mechanism, operating angle and speed, applied forces and torque, installation state, temperature, corrosion or cleaner exposure, lubrication, cycling sequence, dwell, abuse cases, inspection intervals, allowable wear or play, failure definition, sample size, and evidence required. A cycle number without these conditions is not reproducible.
No. More cavities can improve machine utilization, but they also increase projected area, shot demand, die size, flow balancing difficulty, slide and insert complexity, tooling cost, trim and automation scope, and the cost of an unstable cavity. Compare good parts per hour and lifetime cost using validated cycle, OEE, scrap, finish yield, maintenance, tooling life, changeover, and demand.
Normalize alloy, clamp calculation, shot package, die limits, injection control, hot-end or metal-delivery scope, thermal control, extraction, trim, inserts, automation, inspection, traceability, trials, utilities, safety, documentation, spares, installation, training, service, warranty, exclusions, and acceptance criteria. A lower machine price is not a lower approved-part cost.
Hardware project request
A useful first review identifies the material route, machine limits, die and automation boundary, finish risks, and missing decisions without inventing hidden assumptions.
Application, assembly, environment, loads, motion, life, safety or security standard, and failure criteria.
2D/3D, alloy, weights, projected area, walls, datums, cavities, inserts, visible zones, finish stack, and defect standard.
Die envelope, slides, cavity layout, cycle, annual demand, OEE, automation, trim, inspection, traceability, and packaging.
Destination, utilities, timing, trials, tests, run-at-rate, documents, training, spares, service, warranty, and exclusions.
