Screen for projects whose total casting, runners, overflows, and process allowance fit this listed package with an agreed operating margin.
DM90T / Multi-package zinc platform
90 Ton Zinc Hot Chamber Die Casting Machine
The DM90T is a 900 kN hot chamber platform for zinc projects that need a larger die window, a 300 mm clamp stroke, or more complete-shot capacity than the compact range. Three listed zinc shot weights make package selection a technical decision—not a dropdown choice.
Brochure-derived screening values · Reviewed August 9, 2026 by Cathy, Director
Shot-package decision
1.0, 1.26, or 1.53 kg listed zinc shot weight
The brochure lists three values, but the required package must be matched to complete metal demand and the hot-end design. Selecting the highest number by default can introduce unnecessary process and commercial assumptions.
Compare when the complete shot demand exceeds the first listing, then confirm the matching plunger and hot-end interfaces.
Use only after checking fill behavior, pressure, cycle target, furnace connection, gooseneck, nozzle, and available service access.
Buyer checkpoint
Shot weight alone does not confirm machine fit. Review projected area and 900 kN clamp demand separately, then confirm die clearance, injection performance, alloy, hot-end package, and production target as one configuration.
Review the machine RFQ workflow ->DM90T specification ledger
90 ton zinc hot chamber machine technical parameters
Use the ledger for initial engineering and procurement screening. Final signed documents govern the supplied configuration.
01 / Clamping and die
- Clamping force
- 900 kN
- Clamping stroke
- 300 mm
- Die thickness range
- 130-430 mm
- Platen size
- 600 x 660 mm
- Tie-bar spacing
- 400 x 400 mm
02 / Injection and shot
- Injection force
- 65 kN
- Injection stroke
- 130 mm
- Listed zinc shot weights
- 1.0 / 1.26 / 1.53 kg
- Process
- Hot chamber
- Listed material
- Zinc alloys
03 / Power and installation
- Model
- DM90T
- Motor / total power
- 11 / 13.4 kW
- Approx. machine size
- 4.20 x 1.45 x 2.05 m*
- Nominal class
- 90 ton
- Platform role
- Mid-range zinc
Specification source: supplied hot chamber machine brochure | Last reviewed August 9, 2026 by Cathy, Director | Dimensions marked with * are approximate | Final quotation, approved layout, interface drawings, and technical agreement take precedence.
DM90T inspection file
Inspect the machine in the same order you approve it
These configuration-reference images turn three visible areas into written quotation checkpoints.
Approval checkpoint 01

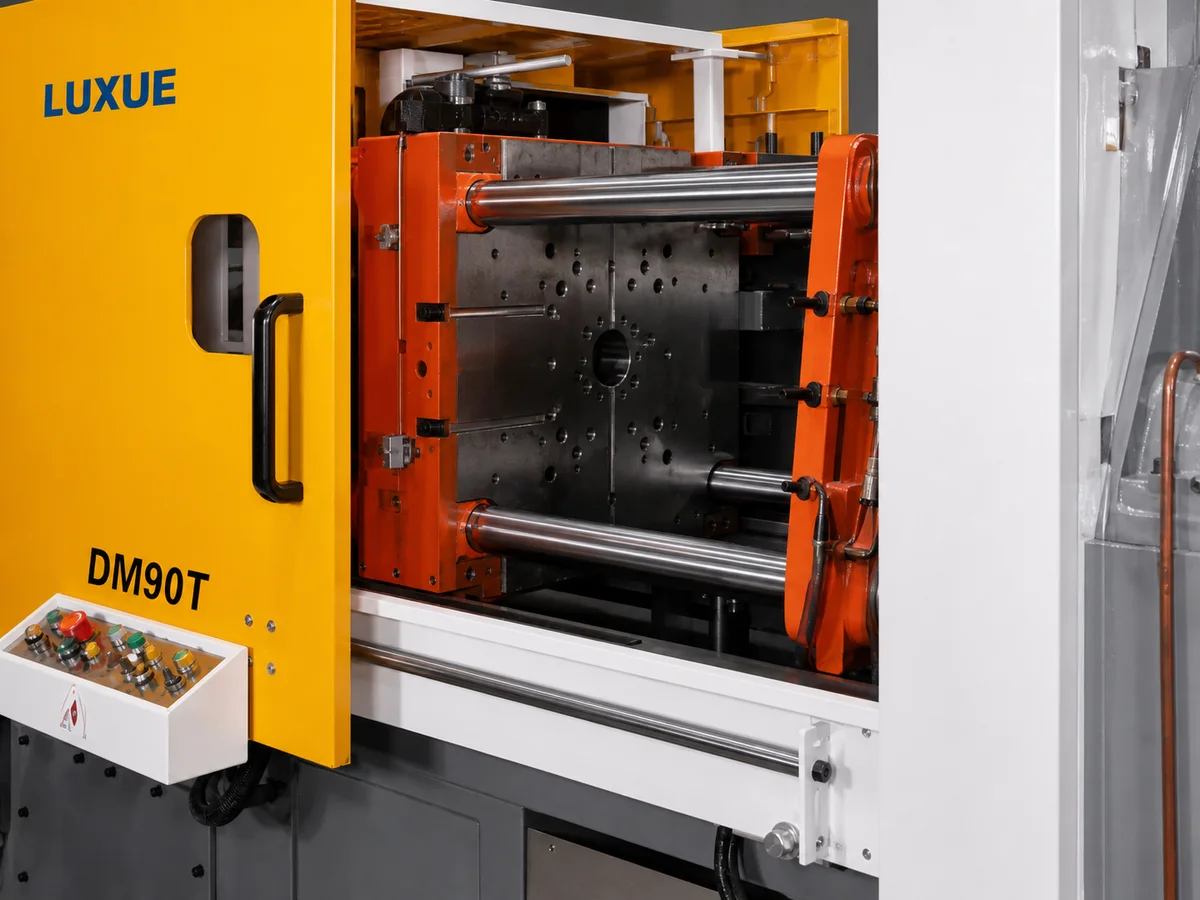

400 x 400 mm clamping window
Confirm die width, height, thickness, weight, mounting pattern, ejector interface, 300 mm clamp stroke, handling access, and guarding—not only the nominal tie-bar opening.
Approval checkpoint 02

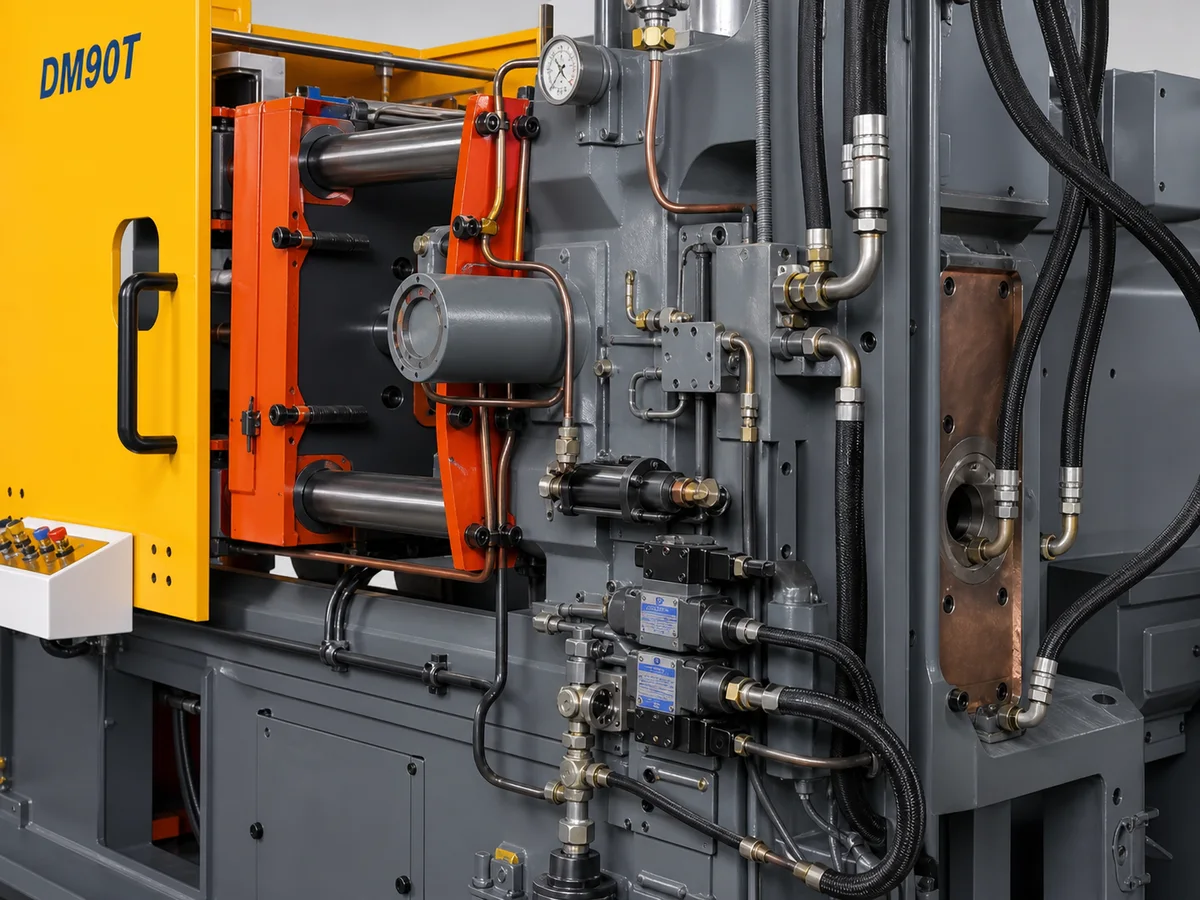

Injection and shot-package interfaces
Match the selected 1.0, 1.26, or 1.53 kg listed zinc package to the complete shot, plunger, gooseneck, nozzle, furnace connection, pressure settings, cycle, and service clearance.
Review hot chamber wear-part families ->
Approval checkpoint 03

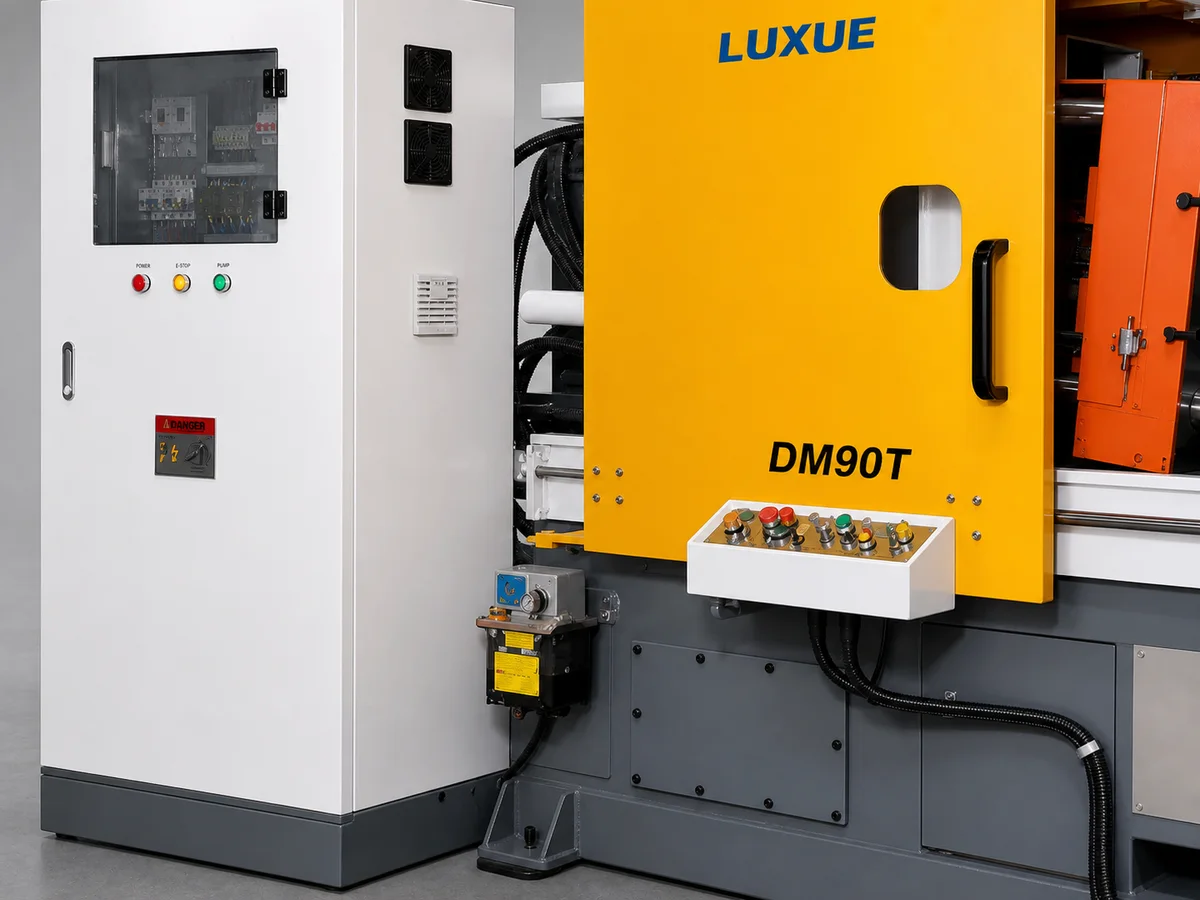

Controls, safety, and maintenance access
Specify controller language, voltage and frequency, cabinet cooling, safety circuit, emergency stops, automation I/O, diagnostic access, drawings, and remote-support expectations.
Selection boundary
Choose DM90T for a defined limit—not for a round number
Hold the part, die, pressure, quality, and cell assumptions constant when comparing models.
DM68T
680 kN · 360 x 320 mm tie bars · 0.9 kg listed zinc shot
Compare DM68T ->DM90T
900 kN · 400 x 400 mm tie bars · three listed shot packages
Validate DM90T ->DM168T
1,680 kN · 486 x 486 mm tie bars · 2.1 / 2.4 / 2.86 kg listed zinc shot
Compare DM168T ->DM90T decision answers
Technical questions buyers should settle before ordering
Use these answers to distinguish clamp, die-window, shot-package, and supply-scope decisions.
Q01What is the DM90T zinc die casting machine best suited for?
The DM90T is an initial candidate for larger zinc parts or multi-cavity dies that need up to 900 kN clamping force, 400 x 400 mm tie-bar spacing, a 130-430 mm die-thickness range, or one of the listed 1.0, 1.26, and 1.53 kg zinc shot packages. Final suitability depends on projected area, cavity pressure, complete shot demand, and the confirmed injection package.
Q02What are the main DM90T technical specifications?
The supplied brochure lists 900 kN clamping force, 300 mm clamping stroke, 130-430 mm die thickness, 600 x 660 mm platen, 400 x 400 mm tie-bar spacing, 65 kN injection force, 130 mm injection stroke, and three listed zinc shot weights: 1.0, 1.26, and 1.53 kg.
Q03How should I choose among the DM90T shot packages?
Start with the complete metal demand for all cavities, runners, overflows, and process allowance, then confirm the matching plunger, gooseneck, nozzle, furnace interface, pressure behavior, and cycle target. The largest listed shot weight should not be selected without checking process performance and the final hot-end configuration.
Q04How does the DM90T compare with the DM68T?
The DM90T raises listed clamping force from 680 to 900 kN, tie-bar spacing from 360 x 320 to 400 x 400 mm, maximum die thickness from 330 to 430 mm, clamp stroke from 215 to 300 mm, and offers shot packages above the DM68T listed 0.9 kg value. The larger footprint and supply scope must also be reviewed.
Q05When should I consider the DM168T instead?
Compare the DM168T when the projected-area calculation exceeds the DM90T clamping margin, the die cannot fit the 400 x 400 mm opening or 130-430 mm thickness range, the complete shot exceeds the confirmed DM90T package, or the automation and service layout require the larger platform.
Q06What should a DM90T quotation confirm?
It should confirm the selected shot and hot-end package, gooseneck and nozzle interfaces, controls, electrical and safety standards, guarding, automation I/O, furnace and peripherals, spare parts, documentation, acceptance, packing, destination terms, inclusions, and exclusions. Images and web specifications remain configuration references.
Model DM50T500 kNZinc alloys
50 Ton Zinc Hot Chamber Die Casting Machine
Compare the compact DM50T when 500 kN, 300 x 300 mm tie-bar spacing, and a 0.9 kg listed zinc shot remain sufficient for the part and die.
View specifications →
Model DM68T680 kNZinc alloys
68 Ton Zinc Hot Chamber Die Casting Machine
Use the DM68T when its 680 kN clamp and 360 x 320 mm die window cover the project without requiring a DM90T shot package or larger 400 x 400 mm opening.
View specifications →
Model DM168T1,680 kNZinc alloys

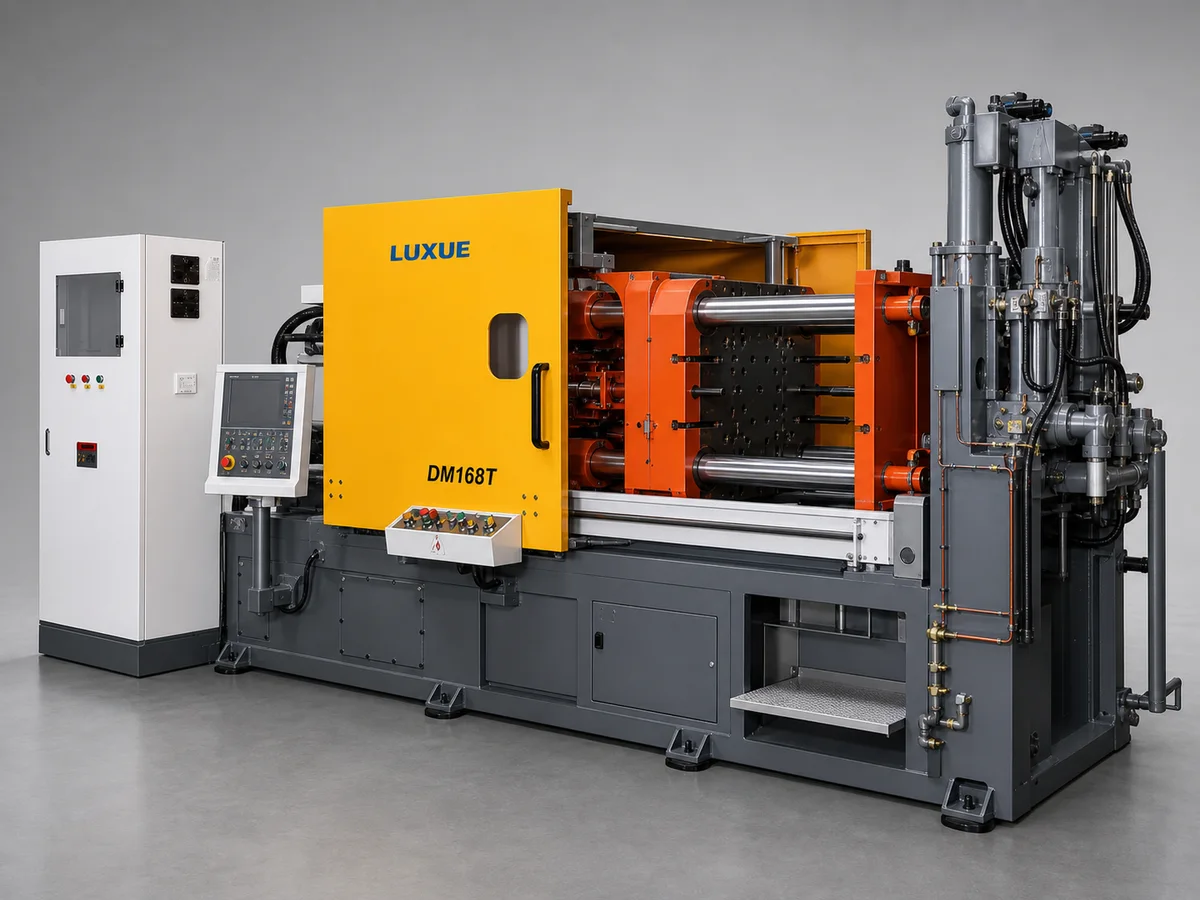

168 Ton Zinc Hot Chamber Die Casting Machine
Move to the DM168T only when the calculation needs 1,680 kN, a 486 x 486 mm tie-bar opening, a 200-520 mm die range, or a listed zinc shot above the DM90T packages.
View specifications →Compare all 38-168 ton zinc hot chamber die casting machine models
DM90T package inquiry
Request one fit decision and one defined supply boundary
Send enough data to check 900 kN clamp demand, die fit, complete shot, package interfaces, utilities, and commercial scope together.
Shot package to review1.0 kg1.26 kg1.53 kg
Final selection requires Luxue engineering confirmation.
