Likely fit
Small zinc castings, compact dies, and cells where the listed 0.7 kg shot weight and 300 mm maximum die thickness cover the project assumptions.
DM38T | Compact zinc machine

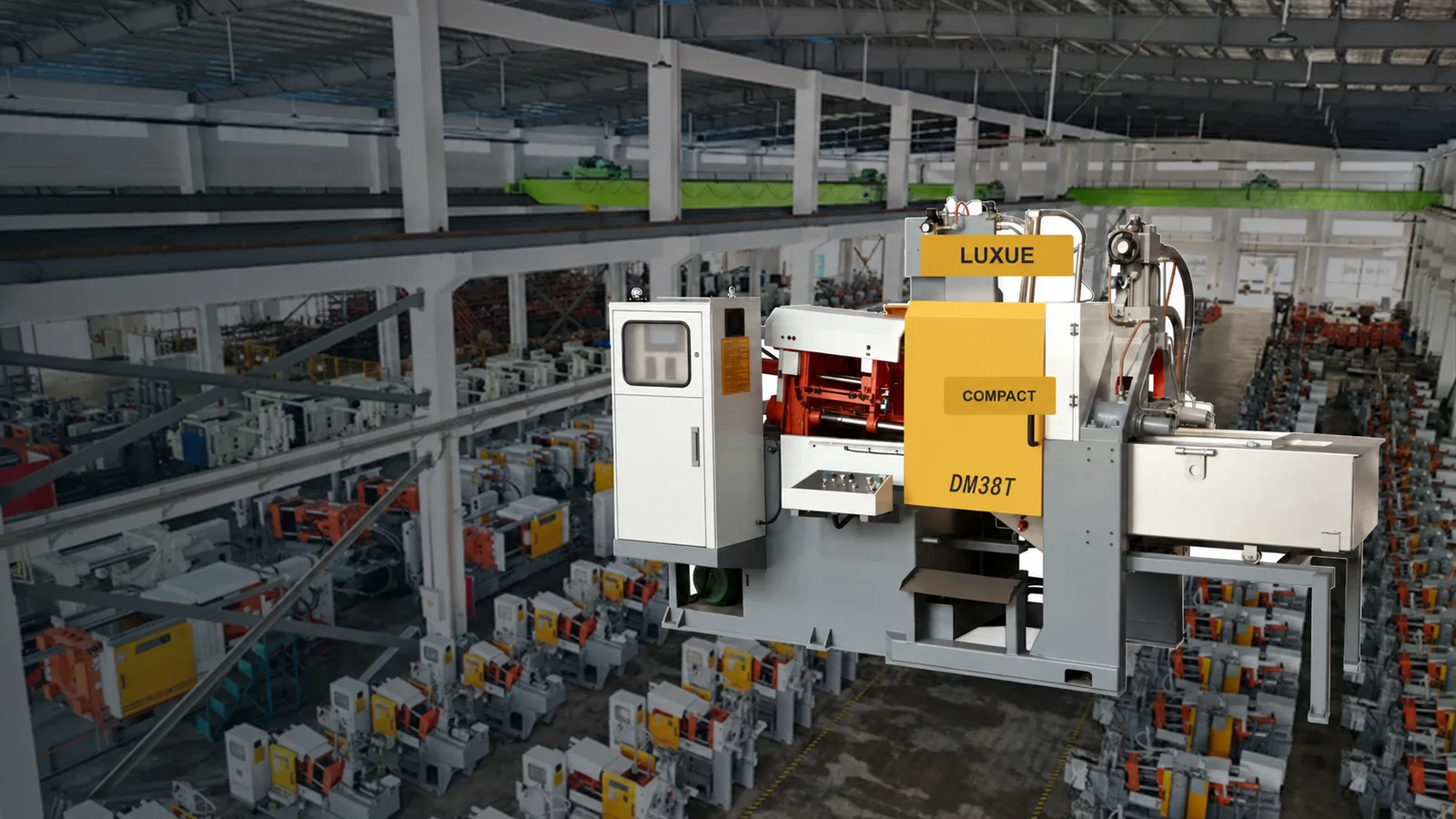

38 Ton Zinc Hot Chamber Die Casting Machine
The DM38T is a compact 380 kN hot chamber machine for initial screening of smaller zinc castings. Shortlist it only after the projected area, total shot weight, die envelope, hot-end package, and production target have been checked together.
- 380 kNclamping force
- 0.7 kglisted zinc shot weight
- 120-300 mmlisted die thickness
DM38T buyer fit
Start with the die, shot and zinc alloy
The 38 ton label is only the first filter. A defensible shortlist needs the casting weight, runner and overflow, projected area, die envelope and target output before the hot-end package is fixed.
Short answer: the DM38T is worth shortlisting when the complete zinc shot stays within the selected shot package, the die fits the 300 x 280 mm tie-bar spacing and 120-300 mm thickness range, and the projected-area calculation leaves an acceptable clamping margin.
Need to confirm the process route first? Read the cold versus hot chamber buyer guide.
Check before approval
Confirm cavity pressure, die weight, tie-bar clearance, shot package, furnace arrangement, cycle target and automation scope.
Do not force the match
A larger projected area, heavier total shot, unusual alloy or restricted die access may require the next hot chamber size or a different process review.
DM38T technical parameters
38 ton zinc hot chamber machine specifications
| Model | DM38T |
|---|---|
| Clamping force | 380 kN |
| Clamping stroke | 190 mm |
| Die thickness range | 120-300 mm |
| Platen size | 450 x 430 mm |
| Tie-bar spacing | 300 x 280 mm |
| Injection force | 50 kN |
| Injection stroke | 105 mm |
| Listed zinc shot weight | 0.7 kg (Zn) |
| Motor / total power | 7.5 / 11.2 kW |
| Approx. machine size | 2.98 x 1.45 x 1.92 m* |
Specification source: supplied hot chamber machine brochure | Last reviewed August 9, 2026 by Cathy, Director | Machine dimensions marked with * are approximate | Final signed technical documents take precedence.
Hot-end details to confirm
Close-up parts that affect DM38T uptime
These images show the relevant component families. Use the exact interface, material, dimensions and spare quantity in the quotation rather than relying on a generic part name.
Immersed gooseneck
Confirm the immersed gooseneck material, mounting arrangement, and compatibility with the selected zinc hot-end package.
Nozzle and nozzle body
The nozzle interface, heating method, tip geometry, and spare strategy should be written into the DM38T quotation scope.
Plunger tip
Ask which plunger tip size and wear material are included, and which operating conditions define the recommended spare.
Shot sleeve and injection path
Check the shot sleeve, plunger stroke, injection force, and maintenance access against your die and cycle requirements.
Planning a commissioning spare kit? Review the hot chamber die casting machine parts families before the quotation is finalized.
Procurement workflow
Move from DM38T shortlist to confirmed configuration
Send the drawing or part data first. Luxue can then check the tonnage assumption, die envelope, shot requirement, hot-end package and quotation scope as one package.
- 01 | Part and die dataWeight, projected area, die dimensions, cavity count and target cycle.
- 02 | Machine fit review380 kN clamping force, tie-bar spacing, die thickness and shot package.
- 03 | Configuration quoteMachine, furnace, controls, automation, spares, packing and destination scope.
Frequently asked questions
What type of parts is the DM38T best suited for?
The DM38T is an initial candidate for smaller zinc alloy castings whose projected area, total shot demand, and die envelope fit the listed 380 kN clamp, 0.7 kg zinc shot weight, 300 x 280 mm tie-bar spacing, and 120-300 mm die-thickness range. Part weight alone cannot confirm suitability.
How do I know whether 380 kN clamping force is enough?
Calculate total projected area, include runners and overflows, apply the expected cavity pressure, and keep an operating safety margin. Luxue should review those inputs together with the die dimensions and shot demand before the model is approved.
When should I compare the DM50T, DM68T, or DM90T instead?
Compare the next model when the DM38T is short on clamping margin, total shot capacity, die thickness, tie-bar clearance, platen area, or automation space. The DM50T adds clamp force, the DM68T adds a wider compact die envelope, and the DM90T moves into a larger 900 kN platform.
What information is needed for a useful DM38T quotation?
Send the zinc alloy, casting and runner weight, projected area, die dimensions and weight, cavity count, target cycle, annual volume, voltage, automation needs, destination, and any required spares or documentation.
What affects the DM38T price and delivery scope?
Price and scope depend on the confirmed hot-end and shot package, controls, electrical standard, guarding, automation, peripherals, spare parts, documentation, packing, and destination. The quotation should identify inclusions and exclusions rather than relying on a headline machine price.
Are the listed DM38T specifications final?
No. The values are transcribed from the supplied machine brochure for initial screening. The signed quotation and final technical documents define the approved configuration and take precedence.
Model DM50T500 kNZinc alloys
50 Ton Zinc Hot Chamber Die Casting Machine
Step up from the DM38T when the project needs 500 kN clamping force, a 330 mm maximum listed die thickness, or a 0.9 kg listed zinc shot weight.
View specifications →
Model DM68T680 kNZinc alloys
68 Ton Zinc Hot Chamber Die Casting Machine
Compare the DM68T when the die needs 360 x 320 mm tie-bar spacing and a 565 x 500 mm platen while staying in the compact hot chamber range.
View specifications →
Model DM90T900 kNZinc alloys
90 Ton Zinc Hot Chamber Die Casting Machine
Move to the DM90T for 900 kN clamping force, 400 x 400 mm tie-bar spacing, a 430 mm maximum listed die thickness, or multiple shot packages.
View specifications →Compare all 38-168 ton zinc hot chamber die casting machine models
DM38T configuration request
Send enough data for a fit decision—not just a price
A useful quotation should answer whether the DM38T fits the part and die, which hot-end and controls are included, and where the commercial scope begins and ends.
Four input groups make the review faster
- 01Part and alloy
Zinc grade, net casting weight, runner and overflow weight, drawing or 3D file
- 02Die envelope
Die width, height, thickness and weight, cavity count, opening and ejection needs
- 03Production target
Annual volume, target cycle, quality requirements and planned shift pattern
- 04Cell and destination
Voltage, guarding, automation, peripherals, documentation, packing and delivery country
Ask the quotation to confirm
Model fit, selected shot and hot-end package, included equipment, options, spares, documentation, packing, destination terms, and every exclusion that affects commissioning.
