Clamp calculation
Sum all pressure-exposed projected area, including cavities, runners, overflows, and slides. State alloy, cavity-pressure basis, quality risk, and operating margin before comparing with 25,000 kN.
Owner: process engineeringDC2500T / Heavy project dossier

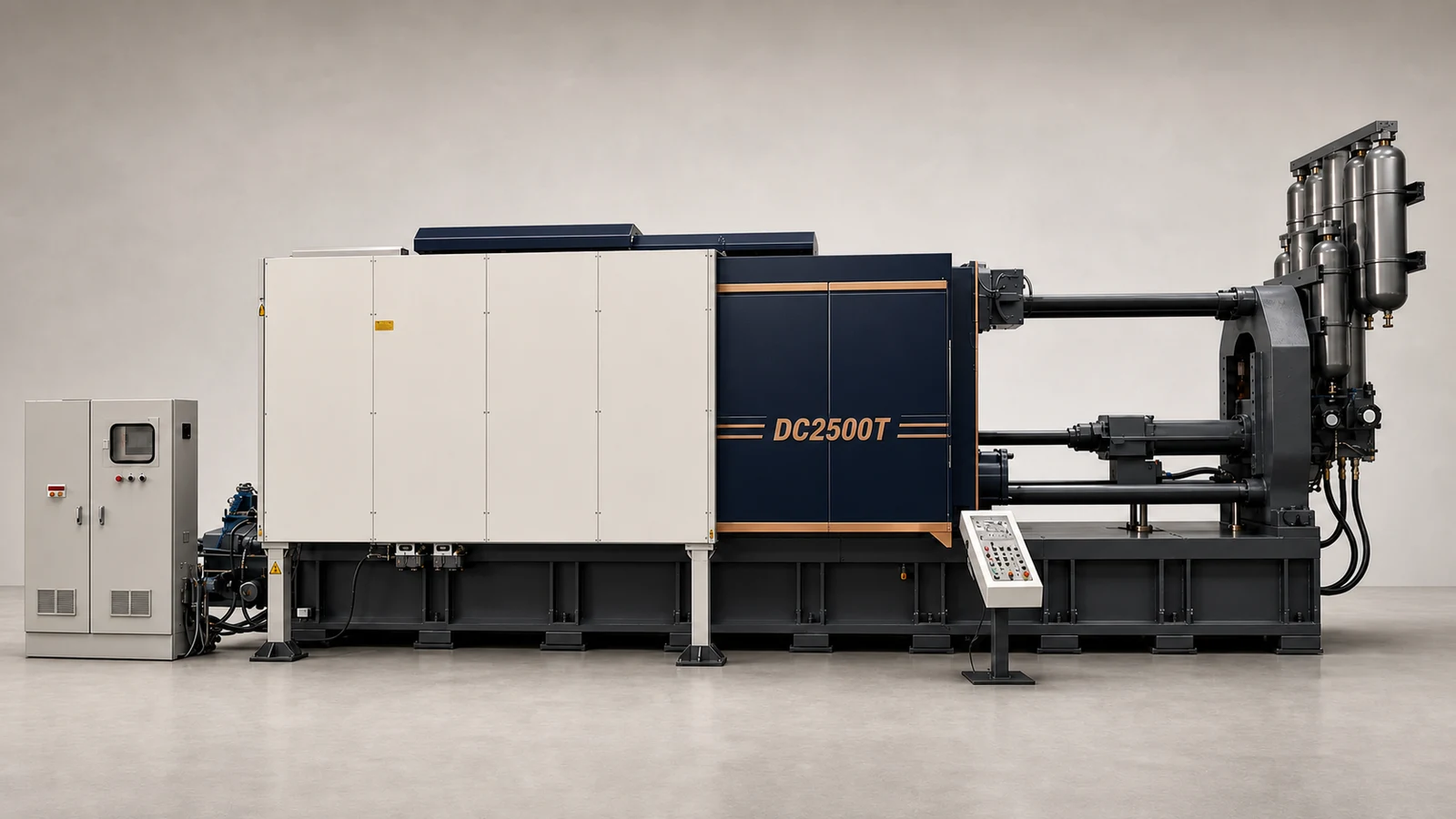

2500 Ton Aluminum Cold Chamber Die Casting Machine
The DC2500T is a 25,000 kN platform for very large aluminum and magnesium projects. A defensible purchase joins casting physics, the exact shot end, die movement, automation, building readiness, delivery logistics, safety, quality evidence, and commercial ownership into one controlled project file.
Published DC2500T data reviewed August 10, 2026 by Cathy, Director. Final configuration, interfaces, options, and scope are governed by approved drawings and the signed technical agreement.
FILE DC-2500TECHNICAL REVIEW
25,000 kN1,500 × 1,500 mm30–55 kg AlApprox. 165 t
Dossier 01 / Qualification record
Six signed records must support the model decision
Run all teams from the same revision-controlled inputs. The platform remains provisional when any calculation, drawing, interface, site condition, acceptance method, or commercial owner is missing.
Complete-shot balance
Include castings, runners, biscuit, overflows, and process allowance. Match the total with one exact plunger package and the pressure needed to deliver the approved quality window.
Owner: process + supplierDie interface file
Verify size, 700–1,800 mm thickness, weight, mounting, opening, ejection, slides, cores, cooling, vacuum, lifting, insertion, removal, storage, and maintenance.
Owner: tooling engineeringCell sequence
Freeze furnace, dosing, spray, extraction, cooling, trim, inspection, scrap, guarding, I/O, data, fault states, manual modes, and safe recovery against one cycle definition.
Owner: automationFactory release
Approve transport, rigging, foundation, crane, floor, route, utilities, oil containment, cooling duty, exhaust, service zones, safety, and the complete installed footprint.
Owner: plant engineeringAcceptance and scope
Normalize inclusions, exclusions, documents, software, spares, packing, installation, training, warranty, FAT, SAT, punch lists, retest, and change responsibility.
Owner: purchasing + qualityDossier 02 / Shot-end boundary
Request paired values—do not engineer from range endpoints
The manufacturer publishes DC2500T boundary ranges. The order needs an exact schedule for every offered 140–180 mm plunger diameter: aluminum and magnesium capacity, intensification pressure, casting area, sleeve dimensions, injection datum, velocity basis, and supplied interfaces.
Approval instruction
Select the smallest confirmed package that clears complete shot while preserving the required pressure and agreed process margin.
PRESSURE-LEDCAPACITY-LED
| Plunger diameter | 140–180 mm |
|---|---|
| Aluminum shot | 30–55 kg |
| Magnesium shot | 21.6–39.6 kg |
| Intensification pressure | 115–70 MPa |
| Published casting area | 2,150–3,500 cm² |
Dossier 03 / Published technical record
DC2500T specifications
These values support initial screening and RFQ preparation. Release the order only after the supplier confirms datums, tolerances, exact shot package, utilities, foundation reactions, component schedules, control scope, drawings, and acceptance conditions.
- Clamping force
- 25,000 kN
- Clamping stroke
- 1,500 mm
- Ejecting force
- 750 kN
- Ejection stroke
- 300 mm
- Die thickness
- 700–1,800 mm
- Platen size
- 2,350 × 2,350 mm
- Tie-bar diameter
- 310 mm
- Tie-bar spacing
- 1,500 × 1,500 mm
- Injection position
- −200 / −400 mm*
- Plunger launch distance
- 450 mm
- Injection force
- 1,800 kN
- Injection stroke
- 1,100 mm
- Plunger diameter
- 140–180 mm
- Slow-shot speed
- 0.1–1.4 m/s
- Maximum air-shot speed
- ≥7 m/s
- Aluminum shot
- 30–55 kg
- Magnesium shot
- 21.6–39.6 kg
- Intensification pressure
- 115–70 MPa
- Casting area
- 2,150–3,500 cm²
- Maximum casting area
- 6,250 cm²
- Shot-chamber flange
- 280 mm
- Flange protrusion
- 30 mm
- System pressure
- 16 MPa
- Oil-tank capacity
- 3,000 L
- Motor power
- 135 kW
- Approx. machine mass
- 165 t
- Machine length
- 14 m
- Machine width
- 4.6 m
- Machine height
- 4.5 m
- Installed cell envelope
- Project-specific
*Confirm injection-position sign convention, reference face, centerline, tolerance, available positions, and shot-sleeve interface on the approved machine drawing.
Published manufacturer reference: ShiMi DC2500T Standard Cold Chamber Die Casting Machine. Use this public record to cross-check the web summary; approved supplier drawings and the signed technical agreement govern the final configuration.
Dossier 04 / Die and movement release
A 1,500 mm opening is only one line in the die-fit file
Approve the complete die as an operating system, not a rectangular envelope. Include every movement, service, lifting condition, access route, safe state, maintenance task, and changeover step.
Static fit
Overall width and height, 700–1,800 mm thickness, platen contact, tie-bar clearance, mounting pattern, shot sleeve, ejector, manifolds, hoses, connectors, sensors, and guarding.
Dynamic clearance
Opening, ejection, slide and core travel, robot approach, spray reach, extraction path, part orientation, collision zones, hose flex, maintenance removal, and failure recovery.
Mass and handling
Fixed and moving-half weights, center of gravity, lifting points, crane capacity and coverage, die cart, insertion alignment, storage, preheat, transfer, and change-time evidence.
Thermal and quality services
Cooling and heating circuits, flow and temperature control, vacuum, venting, lubrication, spray recipe, leak detection, filtration, monitoring, traceability, and approved connection schedule.
Dossier 05 / Inspection views
Review service boundaries before the layout is frozen
These cleaned reference crops help teams discuss access and interfaces. They do not approve a component make, configuration, guard, color, hose route, shot package, option, or maintenance clearance.

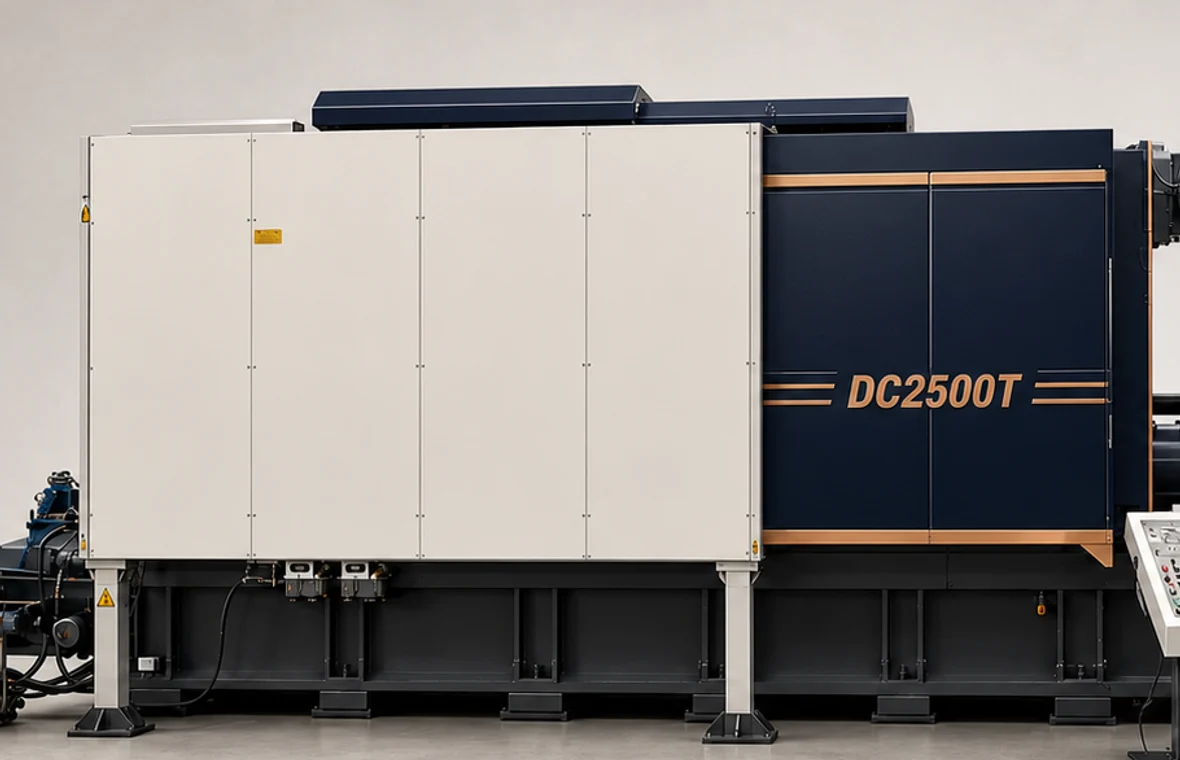

D-2500 / 01
Die-service and clamping enclosure review
Review the complete die route, 1,500 x 1,500 mm tie-bar opening, 700-1,800 mm thickness range, platen mounting, moving and fixed-side utilities, ejection, core pulls, cooling, vacuum, guarding, access doors, isolation, lifting, and maintenance clearances. Final interface and foundation drawings—not this reference crop—release the installation.

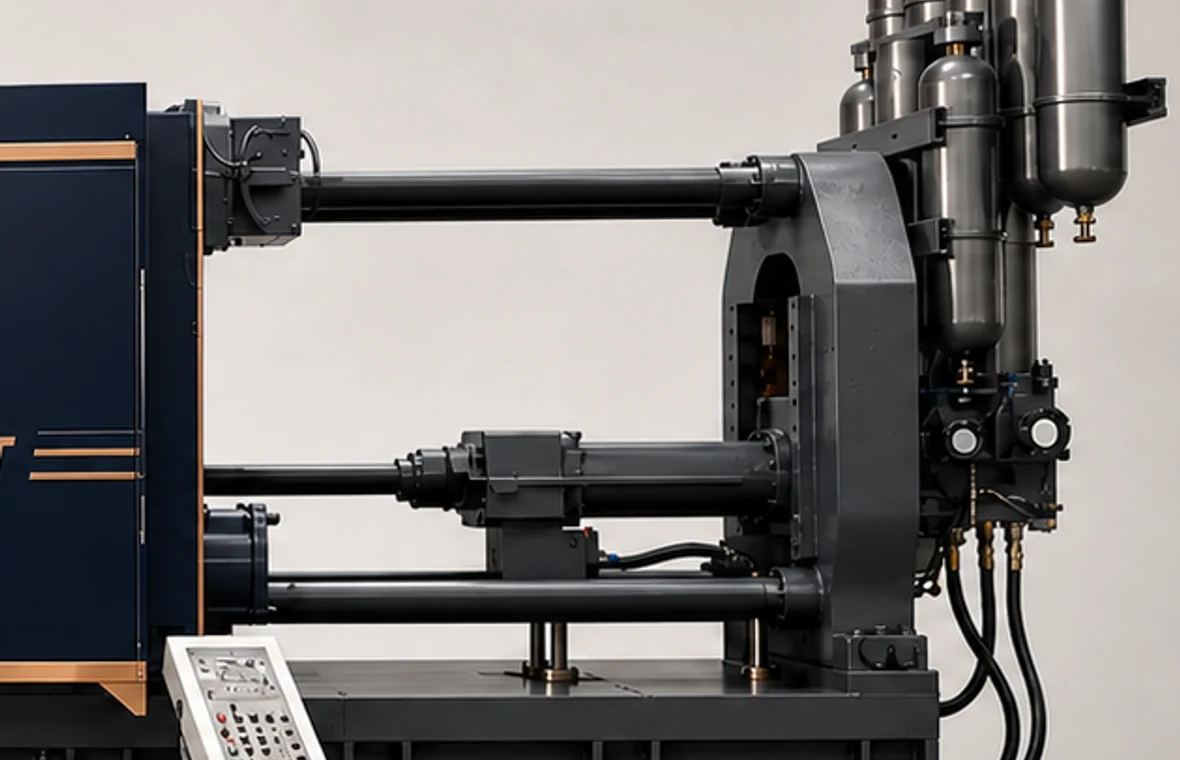

D-2500 / 02
Injection and accumulator service review
Freeze the offered 140-180 mm plunger package, sleeve interface, injection datum, safe accumulator discharge, calibration points, pressure and velocity evidence, inspection access, hydraulic component schedule, oil and filtration requirements, hose and seal spares, and the exact FAT/SAT measurement method.
Dossier 06 / 165-ton delivery and site plan
Release logistics before release of manufacture
The published 14 × 4.6 × 4.5 m dimensions describe the bare machine, not shipping splits or installed-cell space. Final drawings must state shipment weights, centers of gravity, lift points, anchor loads, reactions, utility loads, and service zones.
- 01Evidence: signed route report
Route survey
Check port, road, permits, bridge and axle limits, gates, turning radii, floors, pits, overhead restrictions, unloading and protected staging.
- 02Evidence: approved lift study
Rigging plan
Define shipping splits, weights, centers of gravity, lifting points, crane or gantry, spreaders, shackles, tailing, exclusion zones, supervision, and weather limits.
- 03Evidence: civil drawing pack
Foundation release
Confirm soil and slab basis, pits, reactions, anchors, grout, leveling, alignment datums, vibration, oil containment, drainage, and as-built survey.
- 04Evidence: coordinated layout
Utility and cell release
Freeze electrical, cooling water, air, exhaust, oil cooling, network, lighting, ambient limits, isolation, peripheral footprints, crane coverage, and maintenance routes.
Dossier 07 / Scope and acceptance ledger
Make every boundary measurable and owned
A complete quotation should answer what is supplied, who integrates it, which interface is used, how it is tested, what evidence is delivered, and how an open action is closed.
Configuration baseline
Machine, exact shot end, controls, hydraulics, core pulls, cooling, vacuum, safety, furnace, dosing, spraying, extraction, finishing, data, options, exclusions, and approved makes.
Technical handover
General arrangement, foundation, utilities, interfaces, electrical and hydraulic drawings, manuals, software backups, passwords, certificates, parts lists, maintenance plans, and training records.
Factory evidence
Define build inspection, functions, movements, pressure and velocity traces, alarms, guarding, recipe and data tests, process conditions, sample size, quality checks, pass criteria, punch list, and retest.
Installed-cell evidence
Verify foundation, utilities, alignment, peripheral handshakes, safety, recovery, production trial, capability basis, training, documents, spares, open-action ownership, and final release.
Dossier 08 / Procurement FAQ
Questions to close before project approval
Use these answers for initial screening, then control project calculations, drawings, interfaces, responsibilities, tolerances, test conditions, and evidence in the signed technical agreement.
Q-01What projects should shortlist the DC2500T aluminum die casting machine?
The DC2500T is an initial candidate for very large aluminum or magnesium programs whose documented clamp demand, complete shot, required pressure, die envelope, movement, automation, and plant interfaces fit the published 25,000 kN platform. The 2,500 ton label alone does not approve the casting, die, cycle, quality plan, or factory investment.
Q-02What are the principal DC2500T technical specifications?
Published data lists 25,000 kN clamping force, 1,500 mm clamping stroke, 750 kN ejecting force, 300 mm ejection stroke, 700-1,800 mm die thickness, 2,350 x 2,350 mm platens, 1,500 x 1,500 mm tie-bar spacing, 1,800 kN injection force, 1,100 mm injection stroke, 135 kW motor power, a 3,000 L oil tank, and approximate 165 ton machine weight.
Q-03How should the DC2500T shot-end package be selected?
Published boundaries cover 140-180 mm plunger diameters, 30-55 kg aluminum shot, 21.6-39.6 kg magnesium shot, 115-70 MPa intensification pressure, and 2,150-3,500 cm2 casting area. Obtain the exact paired values for every offered diameter and approve complete shot and pressure together; do not create a purchase configuration by interpolating range endpoints.
Q-04How do I check whether 25,000 kN clamping force is sufficient?
Total the pressure-exposed projected area of all cavities, runners, overflows, and slides, multiply by the agreed cavity-pressure basis, then apply the documented operating margin. Compare that result with 25,000 kN separately from shot capacity, die fit, and the published 6,250 cm2 maximum casting area.
Q-05What factory planning is required for a 165 ton DC2500T?
Approve shipping splits, transport route, unloading and rigging, centers of gravity, crane coverage, foundation and anchor loads, floor capacity, the 14 x 4.6 x 4.5 m bare-machine envelope, die-change and service routes, electrical and cooling duties, exhaust, guarding, oil containment, and all peripheral footprints from approved drawings.
Q-06What should a comparable DC2500T quotation and acceptance plan contain?
Require the selected shot end, controls, hydraulics, core pulls, cooling and vacuum interfaces, furnace and automation ownership, safety scope, utilities, drawings, software, manuals, spares, packing, installation, training, warranty, exclusions, and change-control route. FAT and SAT must define conditions, instruments, samples, data, pass criteria, corrective actions, and retest responsibility.
DC2500T project-file request
Send one controlled dossier for one accountable proposal
A useful reply should return a model-fit decision, exact shot package, interface register, preliminary cell and site plan, acceptance path, commercial boundary, unresolved assumptions, and owners and due dates for every action.
- 01
Casting and process Alloy, drawings, projected area, pressure basis, cavities, net and complete shot, fill, thermal conditions, quality, inspection, and traceability.
- 02
Die and movement Size, 700–1,800 mm thickness, weight, mounting, opening, ejection, slides, cores, cooling, vacuum, lifting, storage, and changeover.
- 03
Cell and performance Cycle, volume, shifts, OEE basis, furnace, dosing, spray, extraction, cooling, trim, inspection, scrap, guarding, I/O, data, and recovery.
- 04
Factory and delivery Layout, route, floor, foundation, crane, utilities, safety, destination, Incoterm, FAT, SAT, documents, installation, training, warranty, and spares.
