Motor & Gearbox Housing Die Casting Machines
Select the machine around the housing’s functional interfaces: bearing geometry, sealing boundary, coolant or oil paths, machining datums, die and shot demand, output, and acceptance evidence.
PROCESS ROUTECold chamber
COMMON ALLOYAluminum*
DECISION UNITPart + die + cell
*The approved drawing and material specification control the actual alloy and process.
Technical content reviewed August 10, 2026 by Cathy, Director. Final equipment suitability requires approved calculations, die data, trials, quality evidence, complete cell scope, and written confirmation.
X / DIE & CLAMPY / SHOT & PRESSURE
01Projected areaPressure basis
02Total shotPlunger package
03Die envelopeMotion + access
04Quality dutyProcess + evidence
Direct answer
Motor and gearbox housings are commonly evaluated on aluminum cold chamber die casting machines. The correct model is the smallest machine that simultaneously passes calculated clamp demand, complete shot demand, die fit and movement, injection performance, quality strategy, automation, and plant interfaces.

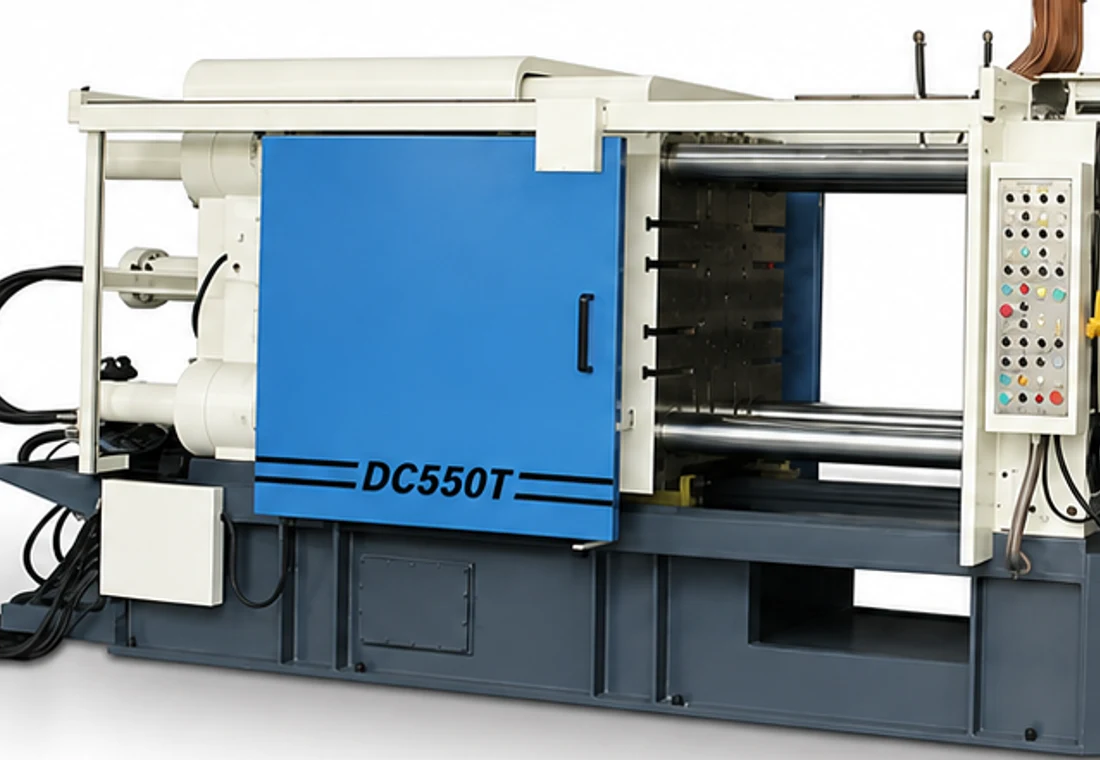

See the selection basisHousing families / functional duty
Similar shapes can carry different process risks
Do not issue an RFQ that says only “motor housing” or “gearbox case.” Identify the function, media, load path, machining strategy, joining method, and acceptance class that make the casting difficult.
G0202
Gearbox and e-axle cases
Gear cases, e-axle housings, differential carriers, reducers, covers, and joined case assemblies.
- Control points
- Bearing-center position, gear alignment, joint flatness, oil sealing, rib filling, machining stock, and noise risk.
T0303
Transmission housings
Automatic, hybrid, commercial-vehicle, and conventional transmission case programs.
- Control points
- Large projected area, local thick-to-thin transitions, pressure integrity, valve and oil passages, die stability, and output.
P0404
Pump and auxiliary housings
Oil, water, vacuum, steering, thermal-management, and accessory-drive housings and covers.
- Control points
- Pressure boundary, ports, seal faces, threaded features, inserts, corrosion exposure, and end-of-line testing.
Interface map / before tonnage
The casting is a system of controlled surfaces and passages
A housing succeeds when its cast and machined features assemble, seal, rotate, cool, lubricate, and survive the specified duty. Mark these interfaces on the drawing before asking a machine supplier to interpret risk from a generic part name.
For every interface, define who owns design validation, die design, casting process, machining, cleaning, gauges, testing, samples, and release.
Build the acceptance map01
Bearing system
Identify every bearing bore, center distance, coaxial or positional relationship, load direction, machining datum, and capability requirement.
02
Seal boundary
Map joint faces, O-ring grooves, radial seals, plugs, ports, water jackets, oil galleries, allowable leakage, pressure, fluid, and test method.
03
Thermal system
Record coolant passages, hot spots, wall transitions, die cooling, local die temperature control, dimensional drift, and operating temperature.
04
Assembly system
Define fasteners, inserts, dowels, connectors, shafts, gears, covers, joining sequence, access, torque, and damage-sensitive surfaces.
05
Machining system
Freeze machining stock, datum sequence, clamping zones, cutting access, chip control, wash requirements, gauge plan, and cast-versus-machined acceptance.
06
Production system
State cavities, volume, cycle, changeover, automation, traceability, reject route, inspection frequency, maintenance, and approved recovery logic.
Selection ledger / six simultaneous checks
Tonnage is only one line in the housing calculation
Record the source, revision, assumptions, result, margin, and owner for every line. A supplier comparison is valid only when all bidders answer the same basis.
CONTROL SHEETHSG / REV APRELIMINARY
Projected area × pressure basis
Include all cavities and relevant runner or slide effects. State the cavity-pressure source and operating margin.
Complete metal demand
Casting, runner, overflow, biscuit, and process allowance against the selected plunger and shot package.
Envelope and movement
Tie-bar opening, platen, die thickness, opening, ejector, weight, slides, extraction, service, and crane access.
Fill and pressure duty
Slow and fast shot, changeover, intensification, response, repeatability, vacuum timing, and monitored process window.
Metal to tested housing
Furnace, dosing, spray, extraction, cooling, trim, handling, marking, leak test, inspection, and reject route.
Installed operating boundary
Route, foundation, power, water, air, exhaust, network, guarding, standards, maintenance, and support.
Do not select from finished casting weight alone. It does not establish clamp demand, total shot, die fit, injection performance, or installed cell capability.
Process window / control the cause
Pressure-tight is a process requirement, not a machine label

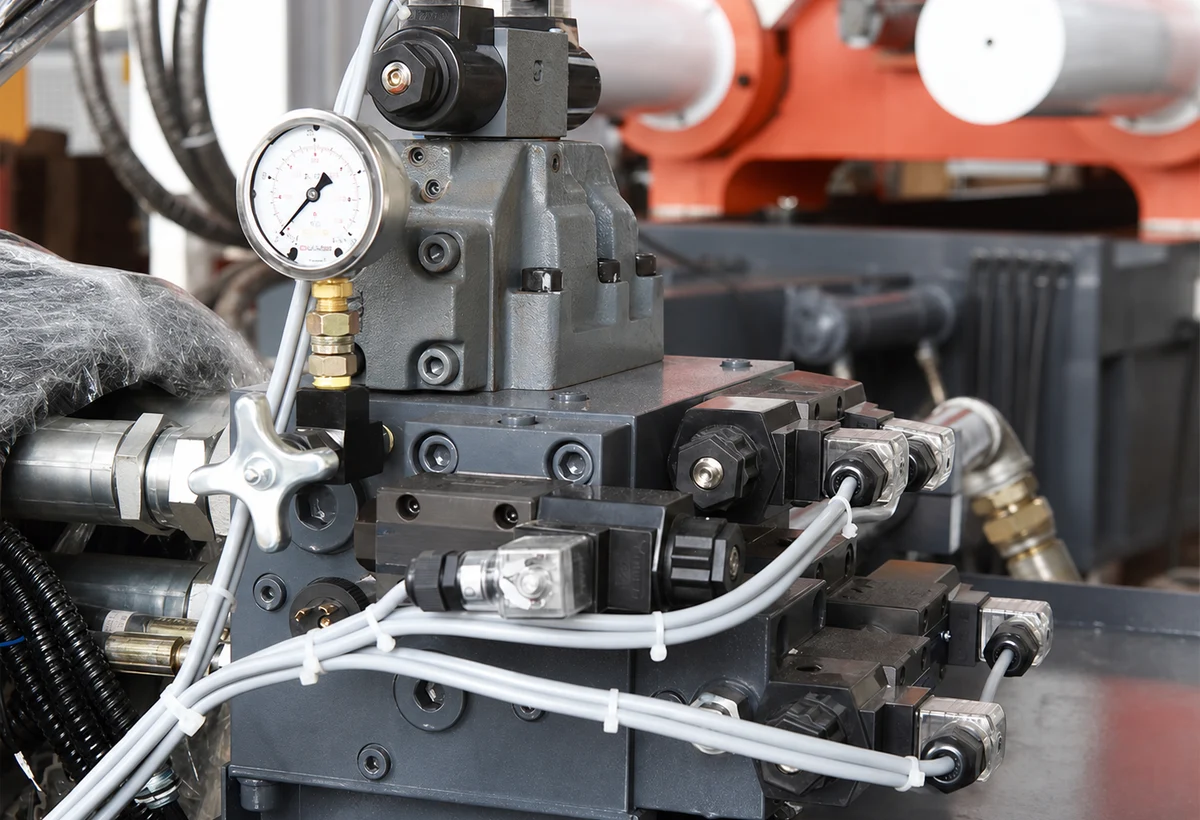

Housing quality depends on the alloy and metal condition, die and gating design, venting or vacuum, injection profile, intensification, die temperature, cooling, spray, cycle stability, trim, handling, machining exposure, and inspection plan.
Define the permitted window and evidence for the risks that matter. If vacuum is required, specify target performance and monitoring. If local die temperature control is required, define circuits, media, flow, sensing, alarms, and maintenance. If impregnation is allowed, state where, when, by whom, and how the final part is released.
No single option proves leak performance or internal quality. The production trial must use representative material, die, peripherals, settings, inspection, and acceptance rules.
Review the cold chamber machine rangeQuality zoning / drawing to evidence
Do not apply one vague quality class to the whole housing
Divide the casting into functional zones. This prevents over-inspecting low-risk areas while leaving a bearing, sealing, cooling, or joint interface under-specified.
ABCD
FUNCTIONAL ZONE REGISTER
DRAWING REVISION / METHOD / FREQUENCY / OWNER / REACTIONFunctional bores
Bearing, shaft, and locating features; define datum, position, roundness, cylindricity, stock, and capability.
Pressure and leak boundary
Water, oil, air, or vacuum zones; define test medium, pressure, time, temperature, allowable leak, and reject rule.
Joint and sealing faces
Flanges, O-ring lands, covers, and plugs; define flatness, surface finish, porosity exposure, machining, wash, and protection.
Internal quality zones
Specify where X-ray, CT, sectioning, density, impregnation, or destructive verification applies and what standard controls.
Machining and leak test / downstream reality
The casting specification must survive machining
Machining can expose subsurface discontinuities, change stress balance, open a leak path, or shift the relationship between functional features. Freeze stock allowance, datum sequence, clamping forces, cutting access, wash and drying, corrosion protection, handling, and the point at which leak testing occurs.
State whether the test is performed on the as-cast, trimmed, machined, washed, plugged, assembled, or thermally conditioned housing. Define test medium, pressure, stabilization, test time, allowable loss, temperature, calibration, master parts, traceability, retest policy, and response to failure.
Review FAT evidence planningBuyer comparison / normalized boundary
Compare complete, accepted-housing capability
A low machine price can exclude the systems that control output and quality. Normalize every quotation before technical and commercial ranking.
| RFQ line | What to freeze | What to reject |
|---|---|---|
| Machine basis | Clamp calculation, shot package, die limits, injection duty, cycle assumptions | Model selected only from part weight or a generic tonnage request |
| Process package | Metal delivery, vacuum, thermal control, spray, extraction, trim, recipes, alarms | Undefined “standard” options without interfaces or acceptance values |
| Quality evidence | Trials, sample count, zones, dimensional and leak methods, capability, traceability | General “automotive quality” statement with no measurable release plan |
| Site and service | Utilities, foundation, route, standards, installation, training, spares, warranty | Exclusions discovered after purchase order or shipment |
External application evidence
Use production examples to improve the RFQ—not replace engineering
Ryobi identifies motor cases, transmission cases, and e-axle cases among its die casting application families. Nemak lists e-motor components and high-pressure die casting in aluminum and magnesium within its product and technology portfolio. These primary sources confirm the application route, but the approved drawing, process plan, and acceptance specification control your equipment decision.
Motor and gearbox housing FAQ
Questions before machine release
These answers support preliminary screening. The approved drawing, calculation, die review, process trial, quotation, and acceptance records remain controlling.
01Which die casting machine is suitable for motor and gearbox housings?
Most aluminum motor, e-axle, gearbox, and transmission housings begin with a cold chamber machine review. Select the model only after calculating clamp demand from total projected area and the approved pressure basis, then verify complete shot demand, plunger package, die envelope, injection duty, vacuum and thermal needs, automation, quality plan, and utilities.
02How is machine tonnage calculated for a housing?
Tonnage is not selected from housing weight. Use total projected area, including relevant runner and slide effects, multiplied by the approved cavity-pressure basis, then apply a documented operating margin. The chosen model must also pass shot, die, movement, injection, cell, and plant limits.
03What information is needed for an electric motor housing review?
Provide the drawing, alloy, casting and runner weight, projected area, cavities, critical walls, die size and weight, bearing and stator interfaces, water-jacket design, pressure and leak test, machining datums, annual demand, cycle target, automation, and plant data. Mark whether the cooling passage is cast, inserted, joined, or subsequently machined.
04How should a gearbox housing quality plan be specified?
Map critical bearing bores, shaft-center relationships, seal faces, oil galleries, threaded ports, gear-clearance zones, mounting datums, and cosmetic surfaces. For each zone, state the cast and machined requirements, inspection method, sampling or capability rule, traceability, and response to nonconformance.
05Is vacuum always required for pressure-tight housings?
Not automatically. Vacuum is evaluated with the alloy, geometry, fill and venting design, wall transitions, required internal quality, heat treatment, welding, leak performance, machining exposure, and the approved process window. If specified, define target performance, monitoring, alarms, maintenance, and acceptance evidence.
06Can leak testing guarantee a porosity-free casting?
No. Leak testing confirms performance under the stated medium, pressure, temperature, time, fixturing, and acceptance limit; it does not prove the absence of all porosity. Combine it with process control and the inspection methods required for the functional risk, such as X-ray, CT, sectioning, dimensional checks, or destructive tests.
07Can one machine produce several housing sizes?
Possibly. Every die must fit the tie-bar opening, platen, die-thickness range, opening and ejector movement, shot package, injection duty, die-service access, automation, utilities, and recipe controls. Compare the verified limits for all planned dies; the most demanding condition controls the common machine and cell specification.
08What should be included in a comparable housing-machine quotation?
Issue one controlled RFQ containing the drawing revision, alloy, volumes, projected area, complete shot data, die information, pressure basis, quality zones, vacuum and thermal scope, peripherals, automation, traceability, utilities, trials, acceptance material, documentation, training, spares, delivery, installation, service, warranty, and exclusions.
Housing project review
Send the functional interfaces with the drawing
The first review should expose missing inputs, not hide them behind a premature model selection.
- 01Casting and function
Drawing, alloy, weights, projected area, walls, bearing system, sealing, fluid paths, loads, joining, and finish.
- 02Die and process
Cavities, die envelope, slides, shot basis, pressure, vacuum, thermal circuits, trim, and handling.
- 03Machining and quality
Datums, stock, critical zones, leak test, inspection, capability, traceability, samples, and reaction plan.
- 04Cell and site
Output, cycle, automation, utilities, route, standards, trials, documents, training, spares, and support.
